Product specification
|
代号 Part No. |

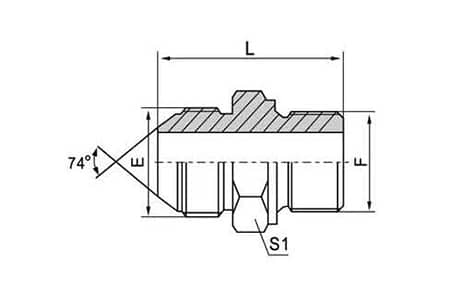

螺纹Thread | 尺寸Dimensions | ||
| E | F | L | S1 | |
| 1JL-04-10 | 7/16" × 20 | M10 × 1 | 29 | 14 |
| 1JL-04-12 | 7/16" × 20 | M12 × 1.5 | 32.5 | 17 |
| 1JL-06-12 | 9/16" × 18 | M12 × 1.5 | 33.5 | 17 |
| 1JL-06-14 | 9/16" × 18 | M14 × 1.5 | 32 | 19 |
| 1JL-06-16 | 9/16" × 18 | M16 × 1.5 | 35.5 | 22 |
| 1JL-06-18 | 9/16" × 18 | M18 × 1.5 | 38 | 24 |
| 1JL-08-16 | 3/4" × 16 | M16 × 1.5 | 37 | 22 |
| 1JL-08-18 | 3/4" × 16 | M18 × 1.5 | 37.5 | 24 |
| 1JL-08-22 | 3/4" × 16 | M22 × 1.5 | 40.5 | 27 |
| 1JL-10-22 | 7/8" × 14 | M18 × 1.5 | 40.5 | 24 |
| 1JL-10-22 | 7/8" × 14 | M22 × 1.5 | 43 | 27 |
| 1JL-12-22 | 1.1/16" × 12 | M22 × 1.5 | 48.5 | 30 |
| 1JL-12-27 | 1.1/16" × 12 | M27 × 2 | 49 | 36 |
| 1JL-16-33 | 1.5/16" × 12 | M33 × 2 | 56 | 41 |
