Product specification
|
代号 Part No. |

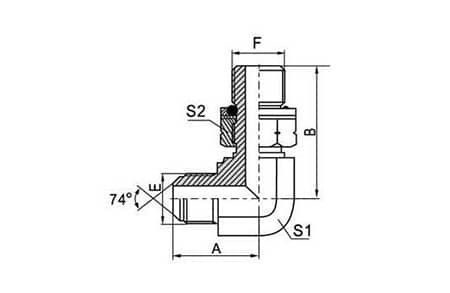

螺纹Thread | 尺寸Dimensions | |||
| E | F | A | B | S2 | |
| 1JG9-04-02OG | 7/16" × 20 | G1/8" × 28 | 24.5 | 26.2 | 14 |
| 1JG9-04-06OG | 7/16" × 20 | G3/8" × 19 | 27.5 | 36.8 | 22 |
| 1JG9-04OG | 7/16" × 20 | G1/4" × 19 | 26.6 | 31.3 | 19 |
| 1JG9-05-04OG | 1/2" × 20 | G1/4" × 19 | 26.5 | 31.8 | 19 |
| 1JG9-05-06OG | 1/2" × 20 | G3/8" × 19 | 27.5 | 35.8 | 22 |
| 1JG9-06-04OG | 9/16" × 18 | G1/4" × 19 | 26.9 | 31.3 | 19 |
| 1JG9-06OG | 9/16" × 18 | G3/8" × 19 | 28.5 | 35.8 | 22 |
| 1JG9-08OG | 3/4" × 16 | G1/2" × 14 | 34.8 | 43.2 | 27 |
| 1JG9-08-06OG | 3/4" × 16 | G3/8" × 19 | 32 | 36.8 | 22 |
| 1JG9-10-08OG | 7/8" × 14 | G1/2" × 14 | 37.8 | 43.2 | 27 |
| 1JG9-10-12OG | 7/8" × 14 | G3/4" × 14 | 41 | 49.3 | 32 |
| 1JG9-12OG | 1.1/16" × 12 | G3/4" × 14 | 44.2 | 49.3 | 32 |
| 1JG9-12-08OG | 1.1/16" × 12 | G1/2" × 14 | 44.2 | 46.5 | 27 |
| 1JG9-12-16OG | 1.1/16" × 12 | G1" × 11 | 48 | 53 | 41 |
| 1JG9-16OG | 1.5/16" × 12 | G1" × 11 | 49 | 53 | 41 |
| 1JG9-16-12OG | 1.5/16" × 12 | G3/4" × 14 | 49 | 53 | 32 |
| 1JG9-16-20OG | 1.5/16" × 12 | G1.1/4" × 11 | 53.8 | 58 | 50 |
| 1JG9-20OG | 1.5/8" × 12 | G1.1/4" × 11 | 55.5 | 58 | 50 |
| 1JG9-20-16OG | 1.5/8" × 12 | G1" × 11 | 55.5 | 58 | 41 |
| 1JG9-24-20OG | 1.7/8" × 12 | G1.1/4" × 11 | 62.5 | 63 | 50 |
| 1JG9-24OG | 1.7/8" × 12 | G1.1/2" × 11 | 62.5 | 63 | 55 |
