6C-LN/RN/6D-LN/RN
category：Metric transition joint
产品描述：Metric thread bite type 24° seal tube fittings order instruction
Sample instruction:
1CT-30-12 is light type fitting "L" series. 1DT-30-12 is heavy type fitting "S" series.
ICT-30-12RN is one set fitting,include cutting ring and nut. 1DT-30-12RN is one set fitting, include cutting ring and nut. "9" in part no. means 90° elbow, "4" in part no. means 45° elbow.
Inquiry

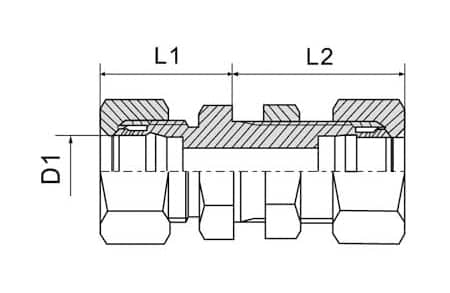

Product specification
|
代号 Part No. |
螺纹Thread | 管子外径Tube O.D. | 尺寸Dimensions |
压力等级 Mpa |
|||
| E | F | D1 、D2 | L1 | L2 | S1 | ||
| 6C-12-LN | M12 × 1.5 | M12 × 1.5 | 6 | 22 | 42 | 17 |
31.5 轻系列 L |
| 6C-14 -LN | M14 × 1.5 | M14 × 1.5 | 8 | 23 | 42 | 19 | |
| 6C-16 -LN | M16 × 1.5 | M16 × 1.5 | 10 | 25 | 43 | 22 | |
| 6C-18 -LN | M18 × 1.5 | M18 × 1.5 | 12 | 25 | 44 | 24 | |
| 6C-22 -LN | M22 × 1.5 | M22 × 1.5 | 15 | 27 | 46 | 30 | |
| 6C-26 -LN | M26 × 1.5 | M26 × 1.5 | 18 | 30 | 49 | 36 | |
| 6C-30 -LN | M30 × 2.0 | M30 × 2.0 | 22 | 33 | 51 | 41 |
16 轻系列 L |
| 6C-36 -LN | M36 × 2.0 | M36 × 2.0 | 28 | 35 | 52 | 46 | |
| 6C-45 -LN | M45 × 2.0 | M45 × 2.0 | 35 | 40 | 58 | 55 | |
| 6C-52 -LN | M52 × 2.0 | M52 × 2.0 | 42 | 42 | 59 | 65 | |
| 6D-14 -LN | M14 × 1.5 | M14 × 1.5 | 6 | 27 | 44 | 19 |
63 重系列 S |
| 6D-16 -LN | M16 × 1.5 | M16 × 1.5 | 8 | 28 | 44 | 22 | |
| 6D-18 -LN | M18 × 1.5 | M18 × 1.5 | 10 | 31 | 46 | 24 | |
| 6D-20 -LN | M20 × 1.5 | M20 × 1.5 | 12 | 31 | 47 | 27 | |
| 6D-22 -LN | M22 × 1.5 | M22 × 1.5 | 14 | 35 | 50 | 30 | |
| 6D-24 -LN | M24 × 1.5 | M24 × 1.5 | 16 | 35 | 50 | 32 |
40 重系列 S |
| 6D-30 -LN | M30 × 2.0 | M30 × 2.0 | 20 | 39 | 55 | 41 | |
| 6D-36 -LN | M36 × 2.0 | M36 × 2.0 | 25 | 44 | 59 | 46 | |
| 6D-42 -LN | M42 × 2.0 | M42 × 2.0 | 30 | 48 | 64 | 50 | |
| 6D-52 -LN | M52 × 2.0 | M52 × 2.0 | 38 | 53 | 68 | 60 | 31.5重系列S |
